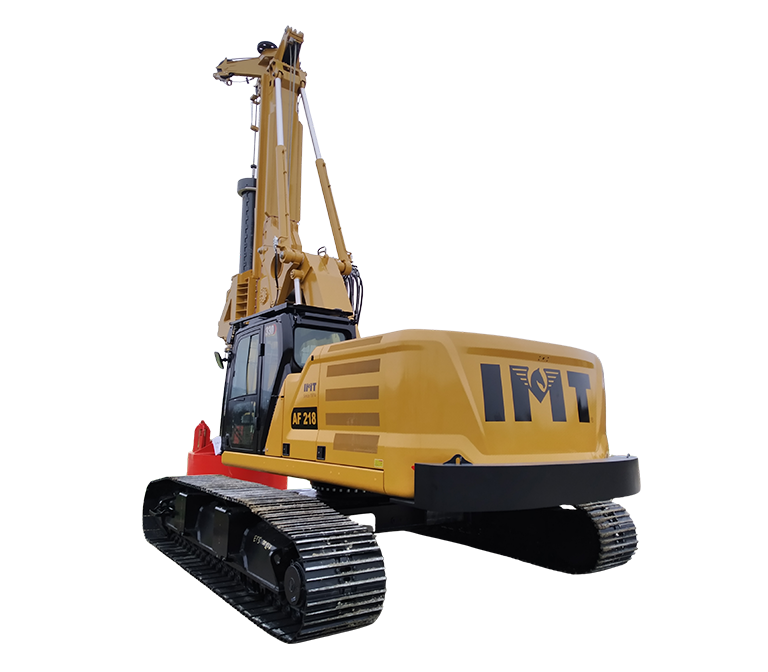

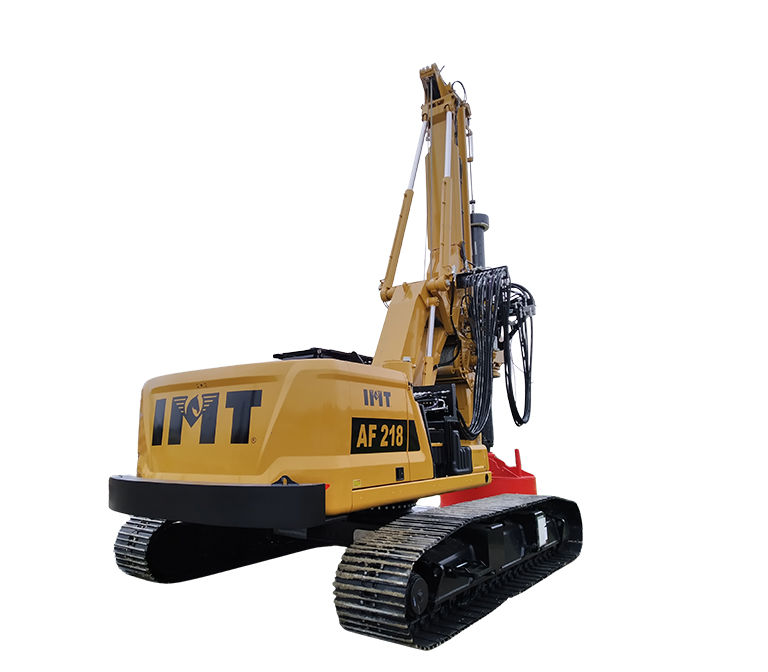

AF218

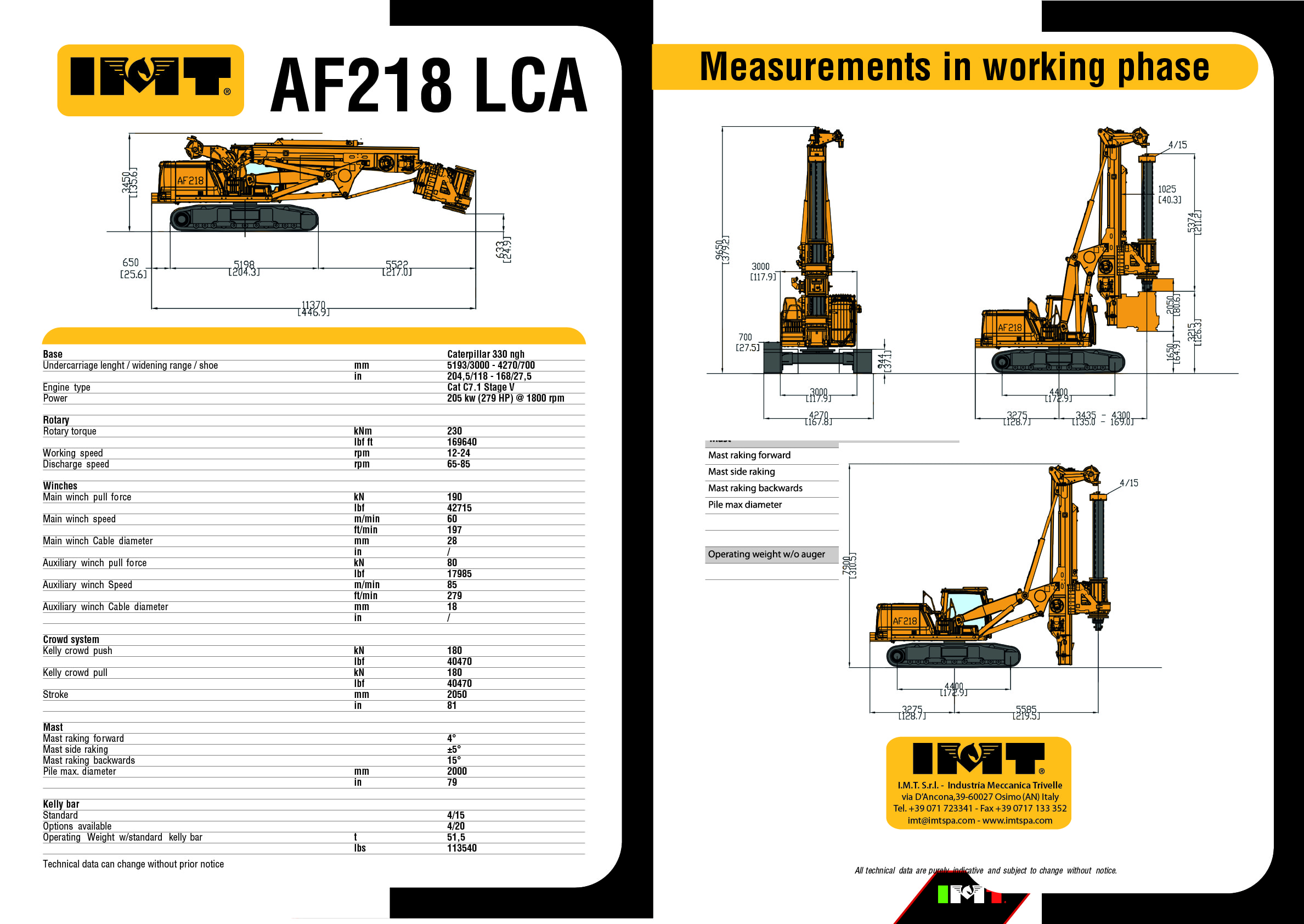

Machine brochure:
Base
Rotary
Winches
Crowd System
Kelly Bar
Mast
Base
| Option | IMT | |
|---|---|---|
| Undercarriage length / widening range / shoe | mm | Caterpillar 330 ngh |
| in | 204,5/118 – 168/27,5
| |
Engine type | Cat C7.1 Stage V | |
| Power | 205 kw (279 HP) @ 1800 rpm |
Rotary
| Option | IMT | |
|---|---|---|
| Nominal torque | kNm | 230 |
| lbf ft | 169640 | |
| Working speed | rpm | 12-24 |
| Discharge speed | rpm | 65-85 |
Winches
| Option | IMT | |
|---|---|---|
| Rated main winch pull | kN | 190 |
| lbf | 42715 | |
| Main winch speed | m/min | 60 |
| ft/min | 197 | |
| Main winch cable diameter | mm | 28 |
| in | / | |
| Auxiliary winch pull nominal speed | kN | 80 |
| ibf | 17985 | |
| Auxiliary winch speed | m/min | 85 |
| ft/min | 279 | |
| Auxiliary winch cable diameter | mm | 18 |
| in | / |
Crowd System
| Option | IMT | |
|---|---|---|
| Kelly crowd push | kN | 180 |
| lbf | 40470 | |
| Kelly crowd pull | kN | 180 |
| lbf | 40470 | |
| Stroke (mm) | mm | 4750 |
| in | 187 |
Kelly Bar
| Option | IMT | |
|---|---|---|
| Standard | 4/42 | |
| Options available | 4/46 – 4/48 – 5/60 | |
| Operating Weight w/standard kelly bar | t (metric) | 57,8 |
| lbs | 127430 |
Mast
| Option | IMT | |
|---|---|---|
| Mast raking forward | 4° | |
| Mast side raking | +/- 5° | |
| Mast raking backwards | 15° | |
| Pile max.diameter | mm | 2000 |
| in | 79 |
Special applications for this machine
LCA VERSION
