AF260
Machine brochure:
Base
Rotary
Winches
Crowd System
Kelly Bar
Mast
Base
| Option | IMT | ||||
|---|---|---|---|---|---|
| Undercarriage length / widening range / shoe | mm |
|
|||
| in |
231 / 118-168/28,5 |
||||
|
Engine type |
CAT C9.3B Tier 4 Stage V |
||||
| Power |
259 KW (347 HP) @ 1750 rpm |
||||
| Oil tank capacity |
160 l |
||||
| Fuel tank capacity |
600 l |
||||
Rotary
| Option | IMT | |
|---|---|---|
| Nominal torque | kNm | 260 |
| lbf ft | 191770 | |
| Working speed | rpm | 11-24 |
| Discharge speed | rpm | 67-101 |
Winches
| Option | IMT | |
|---|---|---|
| Rated main winch pull | kN | 240 |
| lbf | 53955 | |
| Main winch speed | m/min | 73 |
| ft/min | 240 | |
| Main winch cable diameter | mm | 28 |
| in | / | |
| Auxiliary winch pull nominal speed | kN | 120 |
| ibf | 26980 | |
| Auxiliary winch speed | m/min | 80 |
| ft/min | 262 | |
| Auxiliary winch cable diameter | mm | 22 |
| in | / |
Crowd System
| Option | IMT | |
|---|---|---|
| Kelly crowd push | kN | 250 |
| lbf | 56205 | |
| Kelly crowd pull | kN | 390 |
| lbf | 87680 | |
| Stroke (mm) | mm | 6400 |
| in | 252 |
Kelly Bar
| Option | IMT | |
|---|---|---|
| Standard | 4/48 | |
| Options available | 4/46 – 5/66 | |
| Operating Weight w/standard kelly bar | t (metric) | 70,5 |
| lbs | 155426 |
Mast
| Option | IMT | |
|---|---|---|
| Mast raking forward | 5° | |
| Mast side raking | +/- 8° | |
| Mast raking backwards | 15° | |
| Pile max.diameter | mm | 2000 |
| in | 79 |
Special applications for this machine

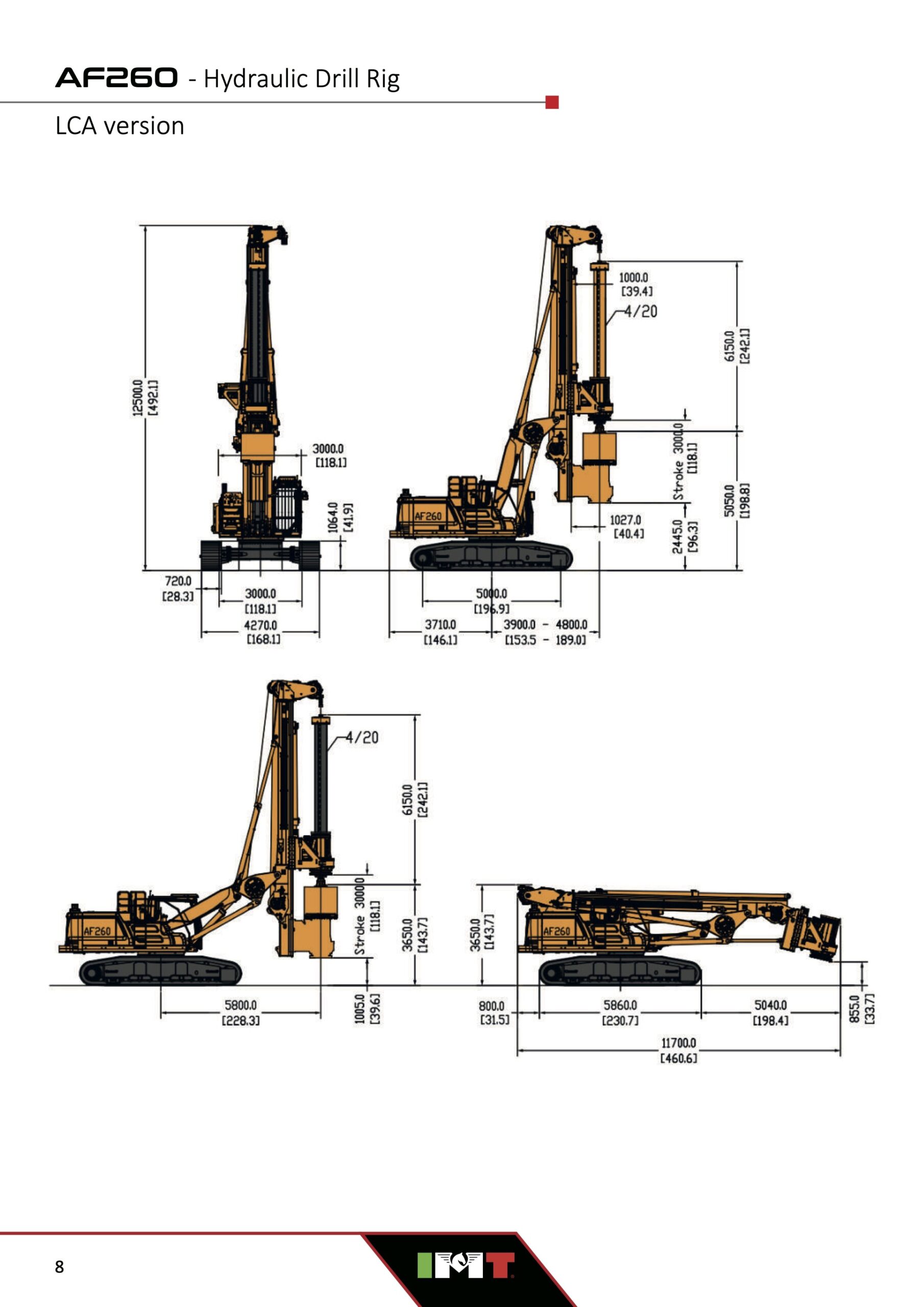

LCA VERSION

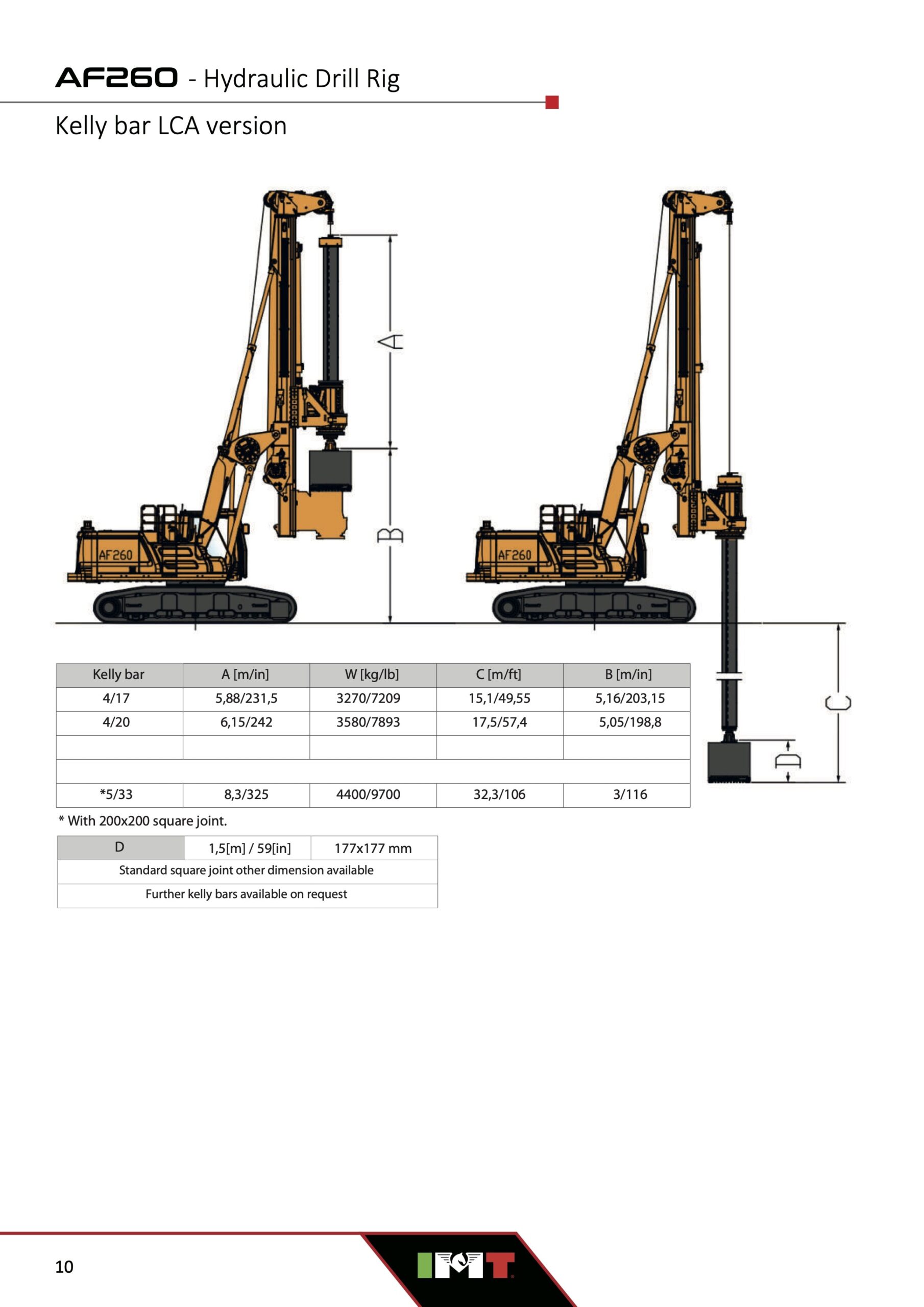

Kelly bar LCA version
